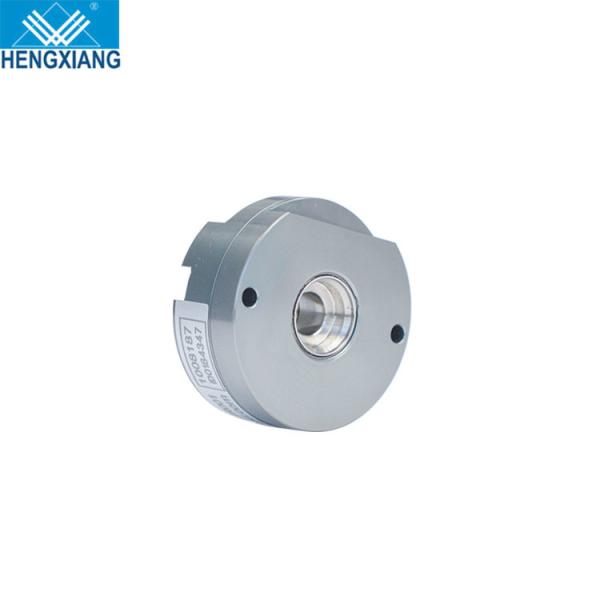

| Items | Basic parameters |
| Brand | Hengxiang |
| Encoder type | Absolute encoder |
| External diameter | 35mm |
| Thickness | 15mm |
| Hollow shaft type | Through hole |
| Hollow shaft diameter | 14mm; 15mm; 19mm; 20mm; 24mm |
| Resolution | single-turn:17Bit, 19Bit,20Bit, 22Bit, 24Bit |
| |
| 2016=20+16Bit, 2216=22+16Bit,2416=24+16Bit |
| Interface | E=SM08B-GHS-TB ；J=radial cable |
| Communication | B=BISS-C; S=SSI |
| Electrical connection | R=RS-485 |
| Output mode | |
| S=single-turn |
| Scanning principle | Reflective grating code |
| Accuracy | ±60" |
| Response speed | Normal action: 6000min-1 |
| RMS position signal noise | ±2@18 bits/r |
| Communication clock frequency | ≤10MHz(BISS) or ≤ 5MHz(SSI) |
| Starting time | typical value: 13ms |
| Absolute position sampling period | ≤75 ns |
| Allowable speed | ≤32200 r/min (restricted by mechanical speed limit) |
| Cable | Differential twisted-paired cable |
| Cable length | 200mm-10000mm |
| Mechanical Connection | With bearing& encircled locking shaft |
| Starting Torque | less than 9.8×10-3 N.m |
| Inertial moment | less than 6.5×10-6 kg.m2 |
| Shaft load | Radial 30N; Axial 20N |
| Slew speed | ≤6000rpm |
| Shell Material | Aluminum |
| Environmental temperature | Operating: -20~+95℃; Storage: -25~+100℃ |
| Environmental humidity | Operating and storage: 35~85%RH(Noncondensing) |
| Vibration | Amplitude 1.52mm, 5~55HZ,2h for X,Y,Z direction individually |
| Shock | 980m/s2 11ms, three times for X,Y,Z direction individually |
| Protection | IP50 |
| Net weight | About 100g |
Technical Theory
Today most incremental encoders have a Push-Pull (HTL) or RS422 (TTL) output driver, these have replaced most of the older output circuits like Open Collector NPN, Open Collector PNP, Voltage Output.
Push-Pull (HTL) circuits, also known as Totem Pole, provide a signal level which corresponds to the applied supply voltage. The supply voltage typically ranges from 8 to 30 VDC.
With proper connections you can use the Push Pull interface to replace true open collector circuits by using an external diode connected in a way to limit the direction of the current for RS422 (TTL) circuits provide a constant 5 V signal level that is not dependent on the supply voltage. Two supply voltage ranges can be selected: From 4.75 to 5.5 VDC (can be used to replace open collector output drivers) or from 8 to 30 VDC. Using differential signals the output fully complies to the RS422 standard.
The differential outputs have the highest frequency response capability and the best noise immunity. To ensure this the receiver should also be a differential.
Replacement of Older Output Drivers
Matters needing attention
1. Must choose the power supply voltage: DC5V or DC8-30V
2. Must choose leaf spring plate model number if you select hollow shaft encoder
3. Please advise the motor speed (RPM) that you actually use
4. If you have any other requirements, please provide detail parameters
